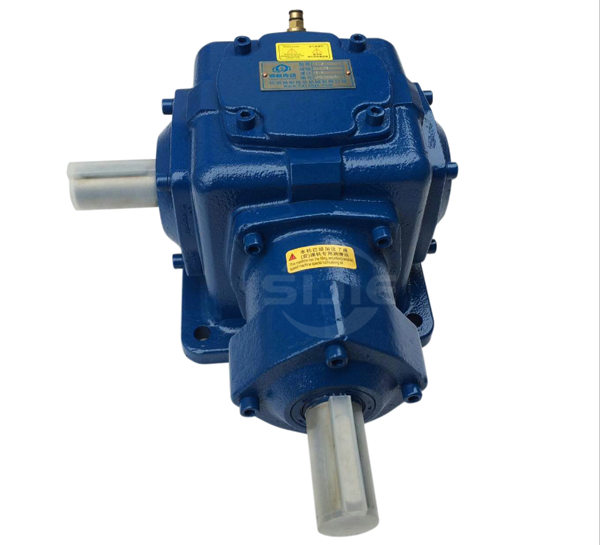

SJ-T12 Bevel Gearbox

SJ-T12 Bevel Gearbox

1. Model: SJ-T12
2. Gearing Type: Spiral Bevel Gear
3. Gear Ratio: 1:1, 2:1, 3:1, 4:1, 5:1
4. Efficiency: 95%
5. RPM Range: 10 rpm – 1450 rpm
6. Torque Range: 619 N.m – 919 N.m
7. Power Range: 0.983 kw – 96 kw
8. Drive Shaft: 2 way, 3 way, 4 way


Inquiry

SJ-T12 Bevel Gearbox Details information:
1. Model: SJ-T12
2. Gearing Type: Spiral Bevel Gear
3. Gear Ratio: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1
4. Efficiency: 95%
5. RPM Range: 10 rpm – 1450 rpm
6. Torque Range: 619 N.m – 919 N.m
7. Power Range: 0.983 kw – 96 kw
8. Drive Shaft: 2 way, 3 way, 4 way
9. Noise Level: less than 80dB
10. Temperature Level: less than 50 ºC
11. Work Temperature: -20ºC~+80ºC
12. Rotate Direction: clockwise, anti-clockwise

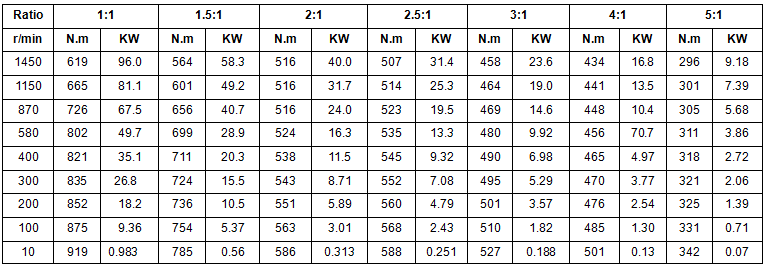

SJ-T12 Bevel Gearbox Specification:

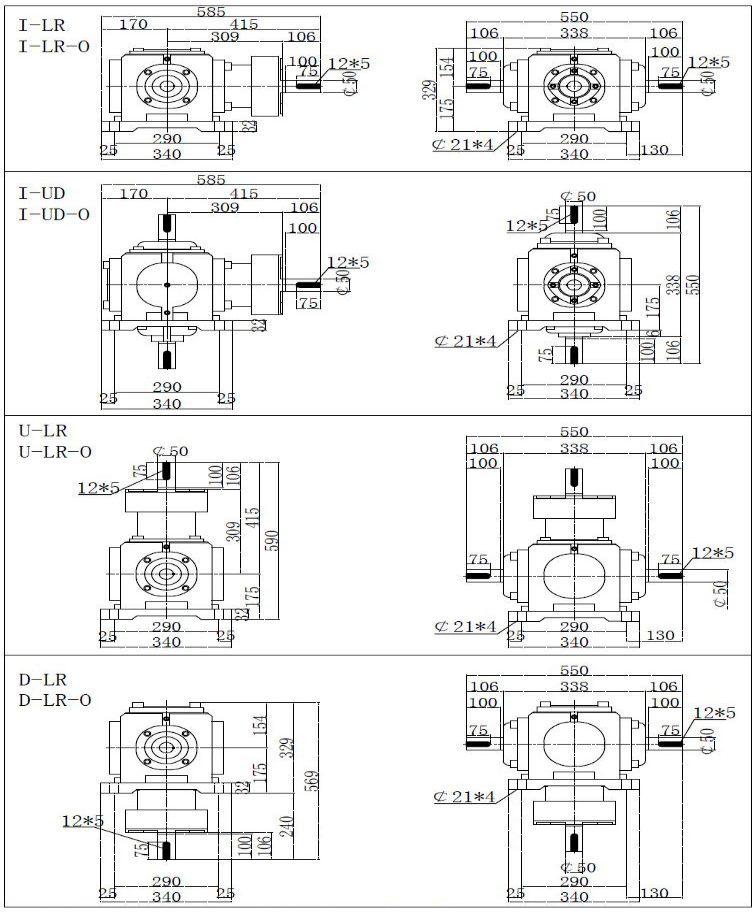

SJ-T12 Bevel Gearbox Dimensions:


SJ-T12 Bevel Gearbox Ordering Information:



1: Bevel Gearbox Brand
SJ: “SIJIE” brand bevel gearbox

2:  Gearbox base NO.
T12:  Gearbox base NO.
Before selecting gearbox base NO. please check above SJ-T12 Bevel Gearbox Specifications

3:  Gear Ratio
1:1 ratio, 2:1 ratio,  customized special gear ratio.

4: Transmission Directions Code

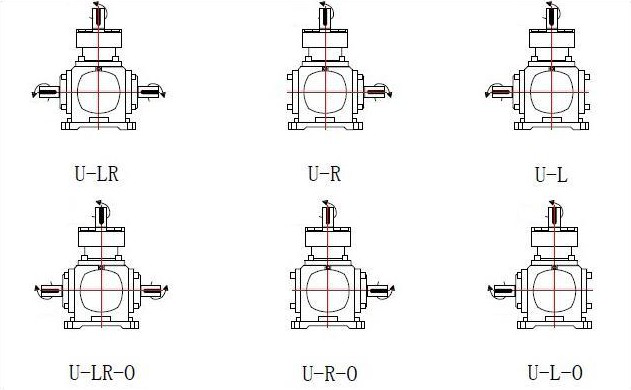

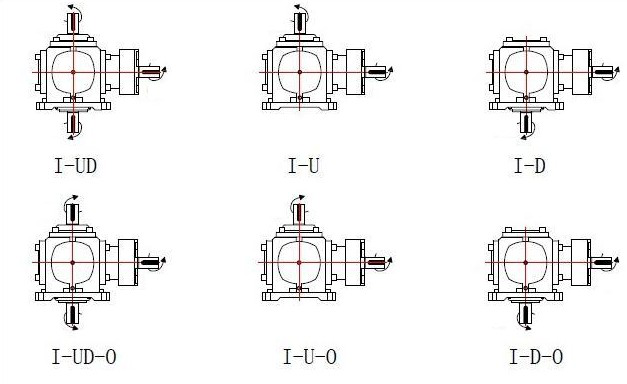

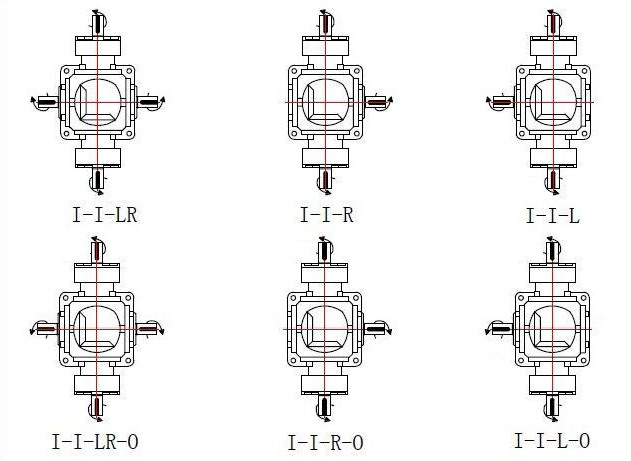

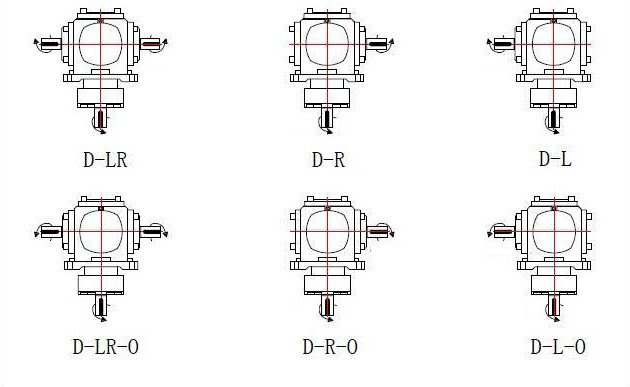

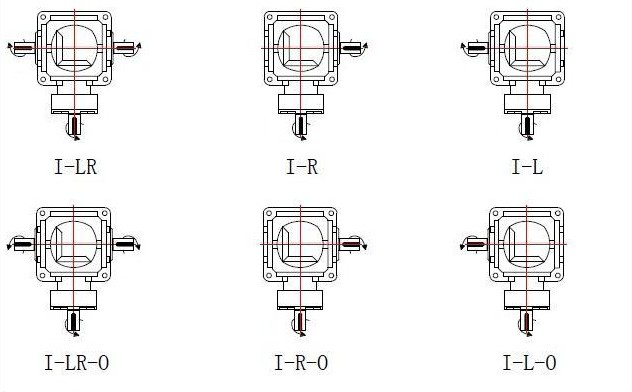

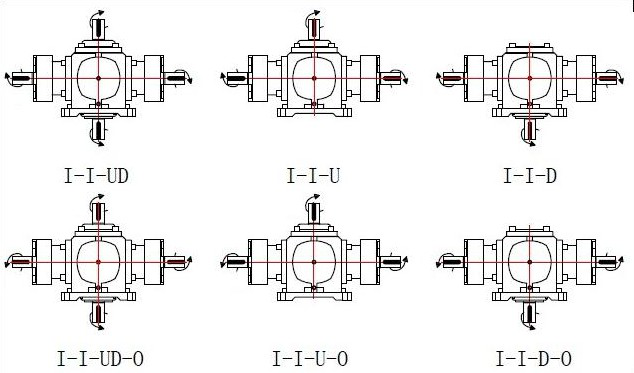

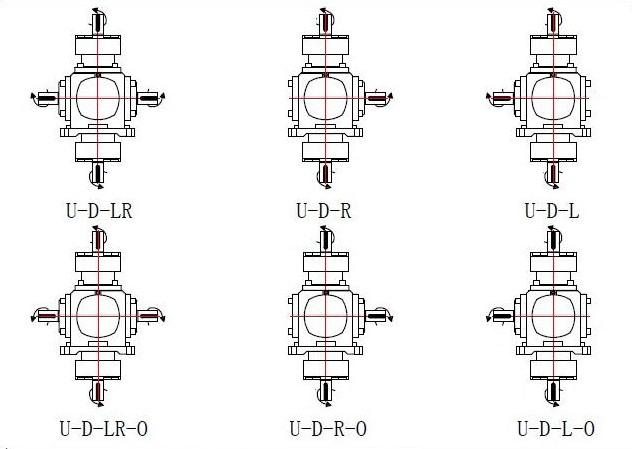

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series,
I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

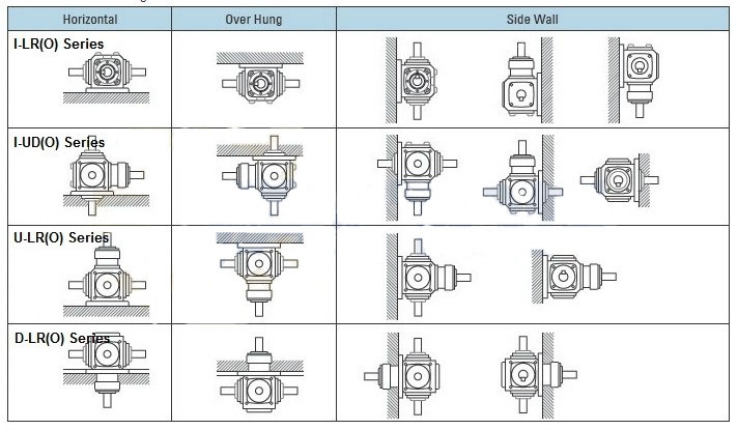

5: Mounting Position
A: Horizontal Mounting Position
B: Over Hung Mounting Position
C: Side Wall Mounting Position
