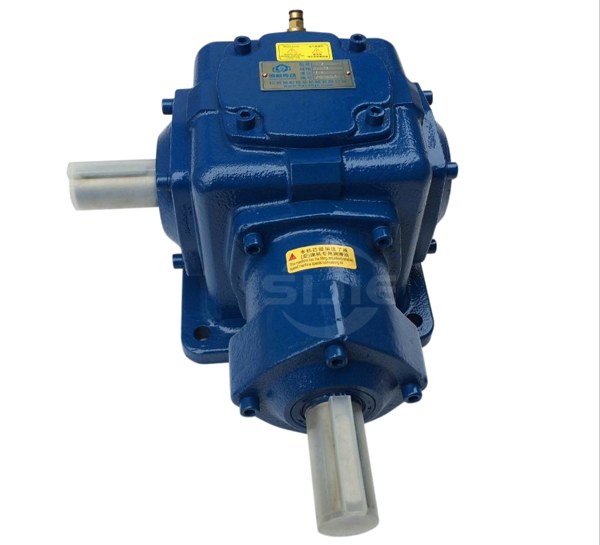

SJ-T25 Bevel Gearbox

SJ-T25 Bevel Gearbox

1: Gearbox Model: SJ-T25
2: Function: 90 degrees angle changes transmission directions
3: Gearing Type: Spiral Bevel Gear
4: Transmission Efficiency: 95%
5: Gear Ratio: 1:1, 2:1, 3:1, 4:1, 5:1
6: Input RPM: Max 1450 rpm
7: Torque Range: 3489 N.m – 5713 N.m


Inquiry

SJ-T25 Bevel Gearbox Detailed Information:
1: Gearbox Model: SJ-T25
2: Function: 90 degrees angle changes transmission directions
3: Gearing Type: Spiral Bevel Gear
4: Transmission Efficiency: 95%
5: Gear Ratio: 1:1, 11:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
6: Input RPM: Max 1450 rpm
7: Torque Range: 3489 N.m – 5713 N.m
8: Input Power Range: 6.3 kw – 335 kw
9: Drive Shaft: 2 way, 3 way, 4 way
10: Noise Level: Less than 80 dB
11: Ambient Temperature: -20ºC~+80ºC, customized special Temperature

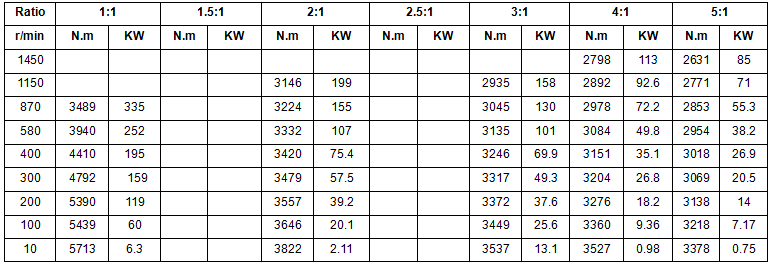

SJ-T25 Bevel Gearbox Specification:

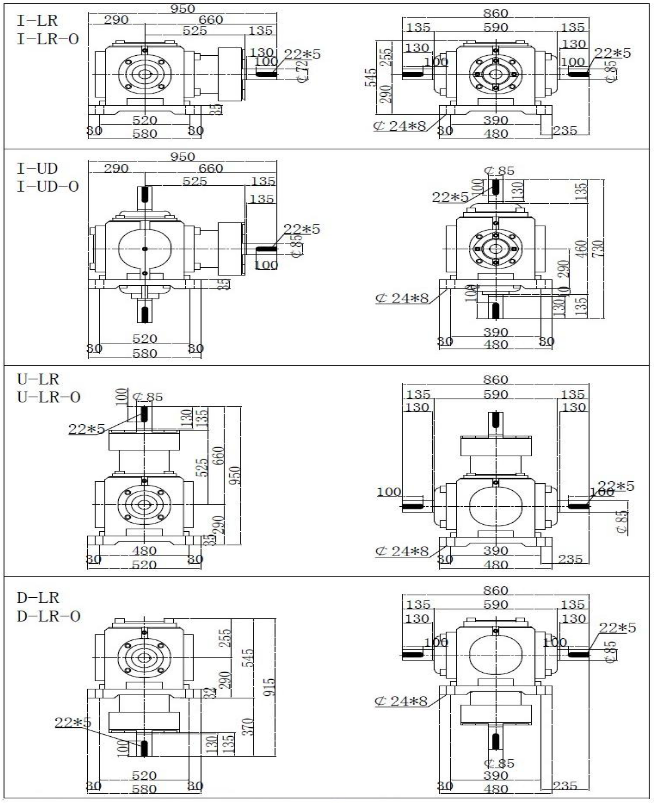

SJ-T25 Bevel Gearbox Dimensions:



SJ-T25 Bevel Gearbox Ordering Information:



1: Bevel Gearbox Brand
SJ: “SIJIE” brand bevel gearbox

2:  Gearbox base NO.
T25:  Gearbox base NO.
Before selecting gearbox base NO. please check above SJ-T25 Bevel Gearbox Specifications

3:  Gear Ratio
1:1 ratio, 2:1 ratio,  customized special gear ratio.

4: Transmission Directions Code

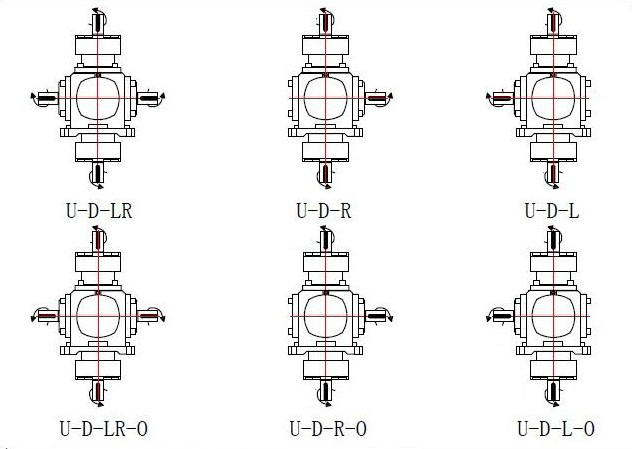

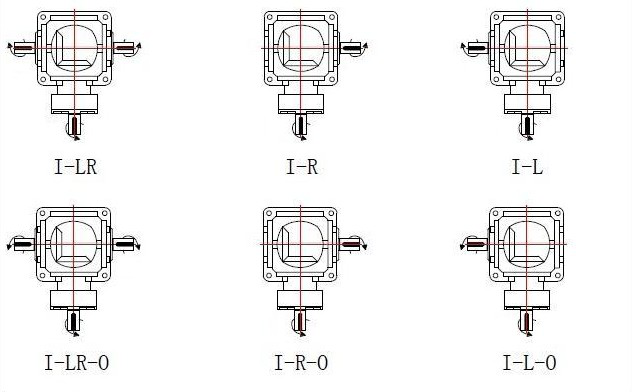

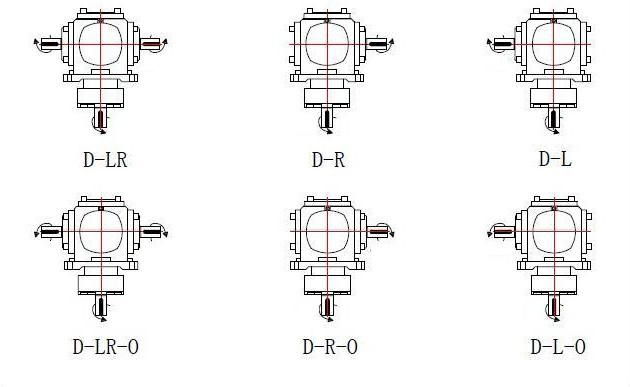

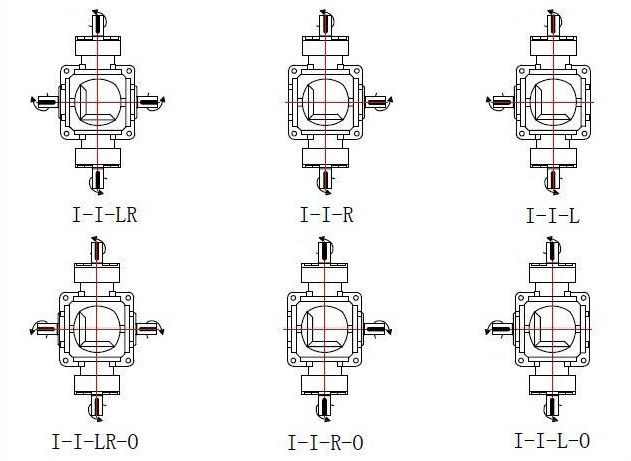

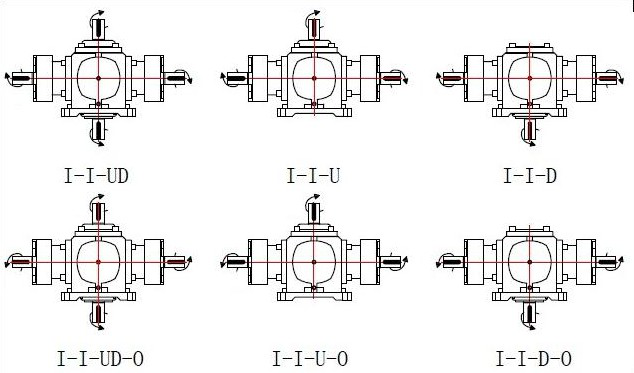

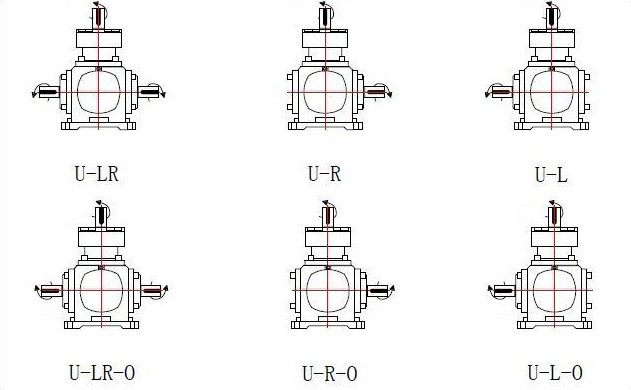

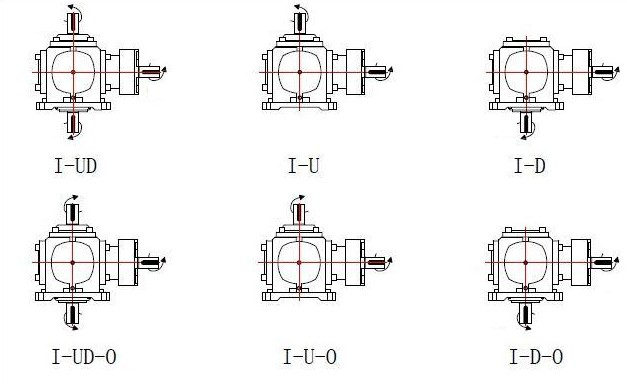

There are 42 type transmission directions code for customers selection, please check below I-LR(O) series,
I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.

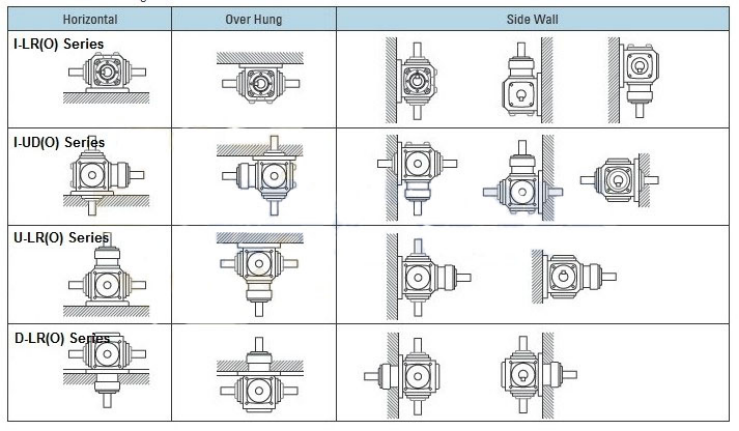

5: Mounting Position
A: Horizontal Mounting Position
B: Over Hung Mounting Position
C: Side Wall Mounting Position
