Screw Jack System

Screw Jack System Description:

Screw Jack System is usually used for lifting heavy duty load or lifting platform. Screw Jack System mainly includes screw
jack, bevel gearbox, electric motor, connecting rod coupling, gear reducer. Clients can choose two jacks system, three jacks system, four jacks system, six jacks system, eight jacks system for your practical application. We can offer a complete screw jack system including electric motor, gear reducer and so on. Before clients place orders, our engineers provide 2D CAD or 3D drawings for final confirmation.

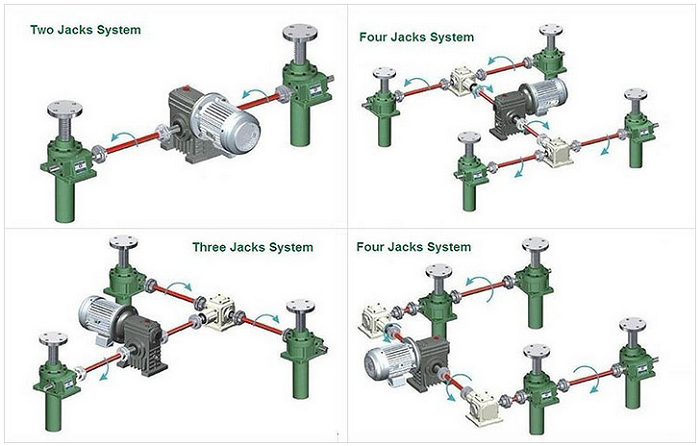

Two Jacks system:
Two Jacks System has two layout. Including 2 screw jacks, 1 bevel gearbox or no bevel gearbox, 2 connecting shafts, 3 or 5 couplings, 1 electric motor.
If clients need lower input RPM, a gear reducer is needed.

Three Jacks System:
Three Jacks System only one layout. Including 3 screw jacks, 2 bevel gearboxes,  6 connecting shafts, 13  couplings, 1 electric motor.
If clients need lower input RPM, a gear reducer is needed.

Four Jacks System:
Four Jacks System has two layout. Including 4 screw jacks, 3 gearboxes, 6 connecting shafts, 13 couplings, 1 electric motor.
If clients need lower input RPM, a gear reducer is needed.

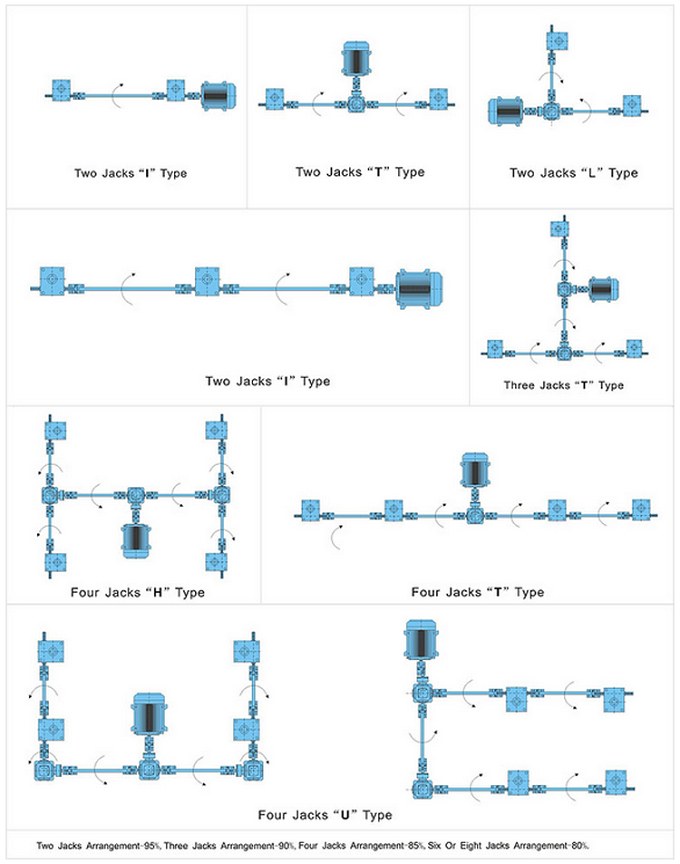

Please Check Below Multi-units Screw Jack System Arrangements
