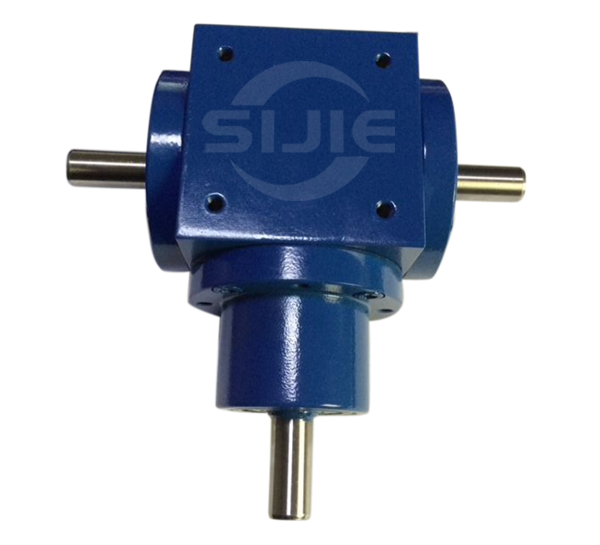

SJV-140 Miter Gearbox

SJV-140 Miter Gearbox

1.Gearbox Model: SJV140
2: Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3: Drive shaft: 2 way, 3 way, 4 way.
4: Max. Permissible Speed 1500rpm, Max Permissible Power 23.9KW.
5: Working temperature: -40ºC~+50ºC, customized special Temperature.


Inquiry

SJV140 Miter Gearbox details information.
1.Gearbox Model: SJV140
2: Gear ratios: 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.
3: Drive shaft available: 2 way, 3 way, 4 way.
4: Max. Permissible Speed 1500rpm, Max Permissible Power 23.9KW.
5: Working temperature: -40ºC~+50ºC, customized special Temperature.
6: Function: 90 degrees angle changes transmission directions

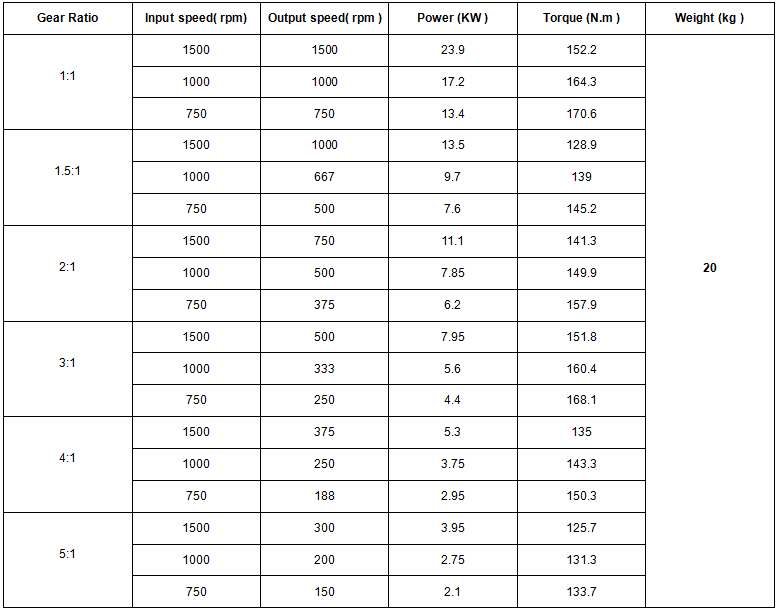

SJV140 Miter Gearbox Specifications:

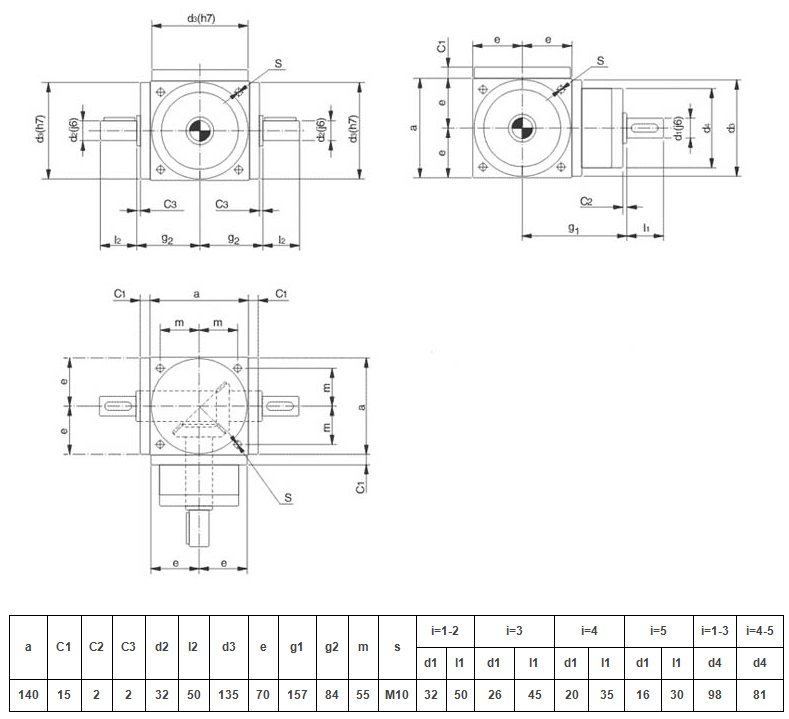

SJV140 Miter Gearbox Dimensions:



SJV140 Miter Gearbox Ordering Information:



1: Gearbox model
Before selecting SJV140 model, please check above SJV140 Miter Gearbox Specifications.

2: Gear Ratio
Gear ratios such as 1:1, 1.5:1, 2:1, 3:1, 4:1, 5:1, custom other gear ratios.

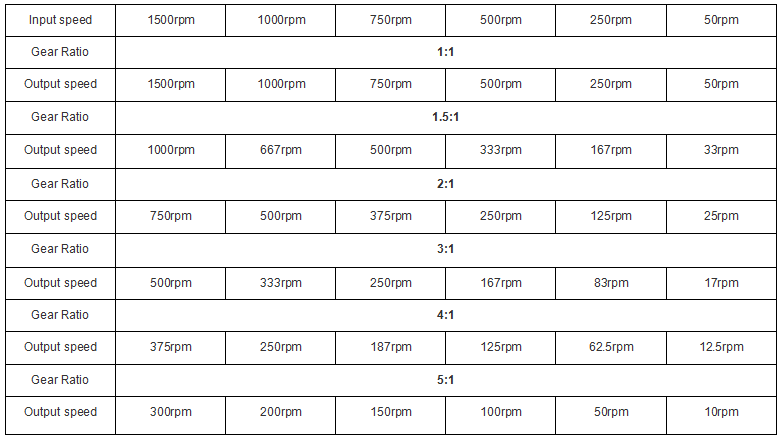

3 & 4. Input & Output RPM

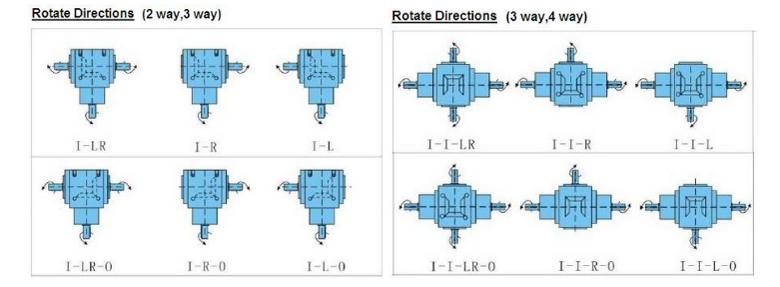

5: Rotate directions:

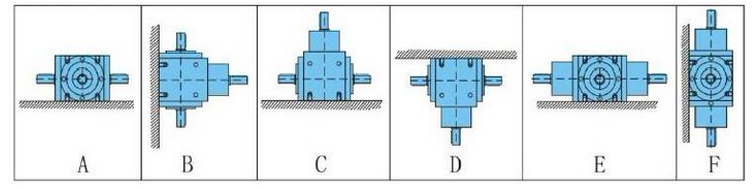

6: Installation:
