SJC Cubic Screw Jack
.jpg)
- SJC-20 Cubic Screw Jack
- 1: Jack Model: SJC-20 2: Static Load Capacity: Max 20 KN 3: Dynamic load Capacity: Max 20 KN 4: Lifting Screw Diam: 30 mm 5: Lifting Screw Pitch: 6 mm 6: Gear Ratio: 1/6, 1/24, 7: Lifting Speed: 0.208mm/s-25mm/s 8: Input Power: 0.009 kw-1.690 kw 9: Max Input: Max 1500rpm 10: Travel Stroke: 0-1400 mm 11: Screw Top End: top plate,clevis end,threaded end,plain end 12: Power Source: Manual operation, Electric operation
- Inquiry
SJC-20 Cubic Screw Jack Detailed Information:
1: Jack Model: SJC-20
2: Static Load Capacity: Max 20 KN
3: Dynamic load Capacity: Max 20 KN
4: Lifting Screw Diam: 30 mm
5: Lifting Screw Pitch: 6 mm
6: Gear Ratio: 1/6, 1/24,
7: Lifting Speed: 0.208mm/s-25mm/s
8: Input Power: 0.009 kw-1.690 kw
9: Max Input: Max 1500rpm
10: Travel Stroke: 0-1400 mm
11: Screw Top End: top plate,clevis end,threaded end,plain end
12: Power Source: Manual operation, Electric operation

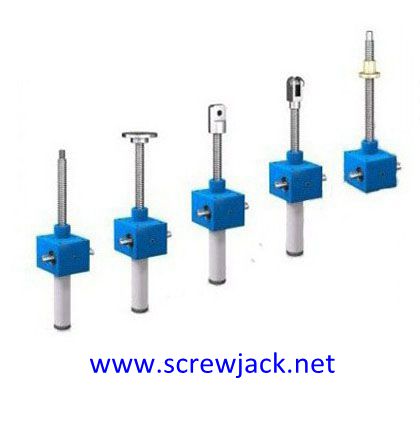

SJC-20 Cubic Screw Jack Pictures:
SJC-20 Cubic Screw Jack Specification:
SJC-20 Cubic Screw Jack Dimensions:
SJC-20 Cubic Screw Jack Ordering Information:
1: Jack Brand
SJC: "SIJIE" brand screw jack
2: Load Capacity
20: 20 KN lifting load.
Before selecting 20, please check above SJC-20 Cubic screw jack specifications.
3: Screw Configuration & Mounting Orientation
US: Upright translating screw UK: Upright keyed screw UR: Upright rotating screw
IS: Inverted translating screw IK: Inverted keyed screw IR: Inverted rotating screw
Note: US,IS(Screw rotation,do axial motion) UK,IK(Screw anti-rotation,do axial motion) UR,IR(Screw fixed rotation,travelling nut do axial motion)
4: Screw Top End
5: Worm Shaft Input Types
A: left side worm shaft input.
B: right side worm shaft input.
C: double worm shaft input.
M1: left side motor flange direct input.
M2: right side motor flange direct input.
M3: left side motor flange direct input, right side worm shaft input.
M4: right side motor flange direct input, left side worm shaft input.
6: Gear Ratio
SJC-20T jack gear ratios include 1/6, 1/24
1/6 : Fast speed,1mm travel length per full turn of worm shaft.
1/24: Middle speed, 0.25mm travel length per full turn of worm shaft.
7: Travel Stroke:
8: Accessories
N: Standard Jack, No additional accessories
P: Steel Cover
R: Rubber Bellow
Y: Hand Wheel
Other accessories, please check below picture
