- SJ-T8 Bevel Gearbox
- 1: Gearbox Model: SJ-T8 2: Function: 90 degrees angle changes transmission directions 3: Gearing Type: Spiral Bevel Gear 4: Transmission Efficiency: 95% 5: Gear Ratio: 1:1, 2:1, customized special gear ratio 6: Input RPM: Max 1450 rpm 7: Torque Range: 294 N.m – 361 N.m 8: Input Power Range: 0.386 kw – 45.6 kw 9: Drive Shaft: 2 way, 3 way, 4 way 10: Noise Level: Less than 80 dB 11: Ambient Temperature: -20ºC~+80ºC, customized special Temperature
- Inquiry
SJ-T8 Bevel Gearbox Detailed Information:
1: Gearbox Model: SJ-T8
2: Function: 90 degrees angle changes transmission directions
3: Gearing Type: Spiral Bevel Gear
4: Transmission Efficiency: 95%
5: Gear Ratio: 1:1, 2:1, customized special gear ratio
6: Input RPM: Max 1450 rpm
7: Torque Range: 294 N.m – 361 N.m
8: Input Power Range: 0.386 kw – 45.6 kw
9: Drive Shaft: 2 way, 3 way, 4 way
10: Noise Level: Less than 80 dB
11: Ambient Temperature: -20ºC~+80ºC, customized special Temperature

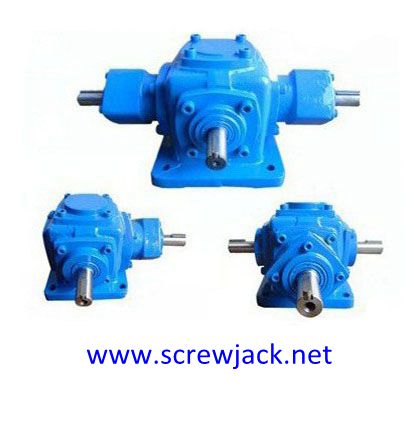

SJ-T8 Bevel Gearbox Pictures:
SJ-T8 Bevel Gearbox Specification:
SJ-T8 Bevel Gearbox Dimensions:
SJ-T8 Bevel Gearbox Ordering Information:
1: Bevel Gearbox Brand
SJ: “SIJIE” brand bevel gearbox
2: Gearbox base NO.
T8: Gearbox base NO.
Before selecting gearbox base NO. please check above SJ-T8 Bevel Gearbox Specifications
3: Gear Ratio
1:1 ratio, 2:1 ratio，customized special gear ratio.
4: Transmission Directions Code
There are 42 type transmission directions code for customers selection, please check below I-LR(O) series, I-UD(O) series, U-LR(O) series, D-LR(O) series, I-I-LR(O) series, I-I-UD(O) series, U-D-LR(O) series transmission directions code.
5: Mounting Position
A: Horizontal Mounting Position
B: Over Hung Mounting Position
C: Side Wall Mounting Position
